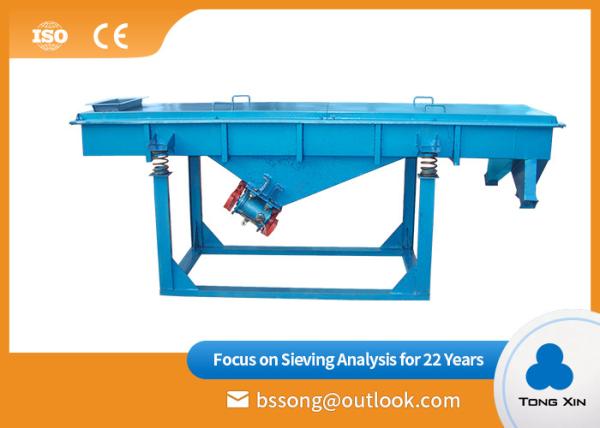

    500*2500 Washing Sand Industry 2*0.4 Linear Vibrating Screen

    Ask Lasest Price
    Brand Name : Tongxin
    Model Number : ZXS-525
    Certification : ISO
    Price : Negotiate
    Payment Terms : L/C, T/T
    Supply Ability : 1000 sets/month
    Delivery Time : According to the order quantity
    • Product Details
    • Company Profile

    500*2500 Washing Sand Industry 2*0.4 Linear Vibrating Screen


    500*2500 1-6 Layers Washing Sand Industry Linear Vibrating Screen Machine​


    Introduction


    The linear vibration sieve machine is composed of two vibration motors, a sieve box, a screen mesh, a vibration absorbing body and a vibration damping device.

    The excellent horizontal motors are used as the power source to make the material be sifted on the screen while moving forward in a straight line. It can be equipped with single or multi-layer screens to achieve grading, impurity removal, powder removal, inspection, washing, dehydration and other purposes.


    Technical Parameter


    ModelSize of Screen SurfaceLayerMesh SizeCapacityDouble AmplitudePowerOverall Dimension(L*W*H)

    ZXS-525

    500*250012-2000.06-85-72*0.42642*808*848
    20.06-84-62*0.42699*808*878
    30.06-86-82*0.752750*808*938
    40.1-155-72*0.42813*808*1000
    50.08-155-72*0.42813*808*1060
    60.07-156-82*0.752953*808*1120

    ZXS-830

    800*300010.1-206-82*0.753080*1098*1120
    20.1-206-82*0.753140*1098*1180
    30.1-206-82*1.53200*1098*1240

    ZXS-1030

    1000*300010.1-206-82*0.753152*1340*1120
    20.1-206-82*1.53219*1340*1120
    30.1-206-82*1.53286*1340*1120

    Features


    Precision designCompact design and simple structure, it is easy to assembly, operate and maintain, ideally suited for automatical operation in production line.
    High screening efficiencyWith high precision, large processing capacity, low noise and energy consumption, fully sealed design and no dust pollution.
    Unique screen designUnique screen structure, cleaned and its screen mesh is easy change (3-5 minutes), suitable for variety of screens(nylon, pp)
    Durable structureThe coarse screen mesh fully supports the fine mesh, which can extend the life of the fine mesh, and reduce the cost of screen mesh.

    Apply in Industry


    Food industrySugar, salt, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc.
    Chemical industryResin pigment, medicine, grease, paint, palette, etc.
    Medicine IndustryPills, tablets, capsules, granules
    Mechanical industryCasting sand, powder metallurgy, electromagnetic material and metal powder, etc
    Paper-making industryCoated slurry, exhaust liquid, paper making liquid and waste water reclamation,
    Organic fertilizer industry.
    Plastics industry.
    The Building industry:
    Abrasive material and ceramic industry

    Structure



    Working Principle



    Two vibration motors installed on the equipment which working in simultaneously and reverse rotation. The screen box supported by four springs produce reciprocating linear motion under the vibration force generated by motors.

    When the vertical component of the vibration acceleration N is greater than acceleration due to gravity G, material in the tank was thrown up, press forward to jump along parabolic path.

    Each vibration of tank, the material would be thrown up once. In the process of encounter with the screen, the material which is smaller than screen mesh can go through, so as to achieve classification purpose.


    Our Service


    1. Professional engineers team can choose the right equipment for you;

    2. We can provide thorough after-sales service to ensure the proper use of machine.

    3. We can provide OEM customization.

    4. We Provide video installation instructions;

    5. We offer 24-hour online consulting service.
