Quality Winning Sieving Vibration Shaker Abrasive Material Partickle Size

Brief Introduction

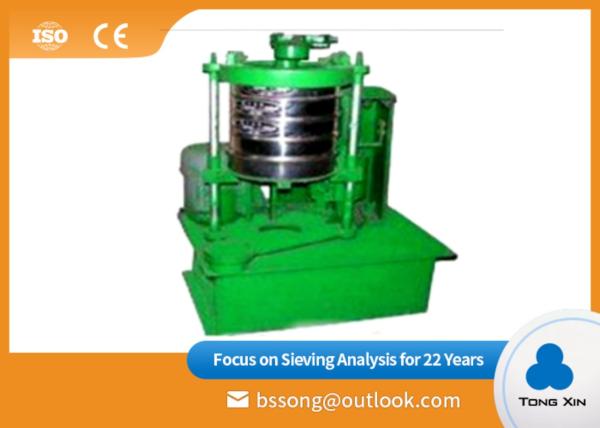

PZJ-TBD (single seat, double seat) standard slap screen machine is on the basis of improved the original PZJ-5A.

The technical parameters are the same as PZJ-5A, but the PZJ-TBD (single seat, double seat) standard slap screen machine solved the problem that PZJ-5A screen machine is easy to wear out the middle gear and eccentric wheel, and it can work continuously for a long time without damage.

We improved the original structure, make the slap type screen machine become small area, less electricity, no oil pollution, sleeve screen can be quickly installed, repair simple and convenient, and low cost.

Structure

Features

1) Good consistency and high transmission accuracy

2) Long service life, low maintenance

3) High screening efficiency: This screening approach has two kinds of movement at the same time,reciprocating motion and top hit vibration, with the advantages of screening thoroughly

4) Cleansing

5) Automatic timing device assures the repetitiveness of experiment

6) Screen up to 500 mesh.

Apply in Industry

The slap screen (slap type standard vibrating screen machine) is suitable for general abrasive grain size composition inspection, super hard material production grading and material composition inspection, and is also widely used in geology, metallurgy, powder, chemical industry, construction, cement, medicine. Research, production, and laboratories in defense and other departments conduct screening tests on materials.

Working Principle

The slap screen is driven by the motor to drive the gear to the main shaft through the timing belt. After the gear is shifted, the main shaft rotates at the required speed.

The main shaft drives the eccentric to make the slide reciprocate, and drives the test sieve installed in the skateboard tray to shake left and right. Drive the ejector gear to rotate.

After the shifting, the ejector pin gear hits the ejector lever through the top of the cam. The ejector pin slaps the slap hammer up and down to test the upper cover of the sieve, so that the materials in the test sieve and the sample sieve reciprocate and vibrate up and down, so that the test is less than the standard test.

The material particles of the sieve mesh are sieved into the lower test sieve, and the layers are screened so that only the same particle size is left in each test sieve. Separation of different particle sizes is achieved and the particle size composition of this material is determined.-

Technical Parameters

Our Service

1. We offer 24-hour online consulting service;

2. 20 years production experience to ensure quality;

3. We have thorough data to ensure the quality;

4. We provide detailed instruction an product information;

5. We provide 12 months quality warranty;

6. We have professional engineer team ensure to provide the most professional equipment;

7. Professional engineers team can choose the right equipment for you.

If you want to get more information of product, please contact us!
