Durable Industrial Vibrating Screen High Frequency Sieve Coal Vibrating Screen

    Buy cheap Durable Industrial Vibrating Screen High Frequency Sieve Coal Vibrating Screen from wholesalers

    Buy cheap Durable Industrial Vibrating Screen High Frequency Sieve Coal Vibrating Screen from wholesalers
    • Buy cheap Durable Industrial Vibrating Screen High Frequency Sieve Coal Vibrating Screen from wholesalers

    Durable Industrial Vibrating Screen High Frequency Sieve Coal Vibrating Screen

    Ask Lasest Price
    Brand Name : Tongxin
    Model Number : ZXS
    Certification : CE
    Price : Negotiate
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 sets/month
    Delivery Time : According to the order quantity
    • Product Details
    • Company Profile

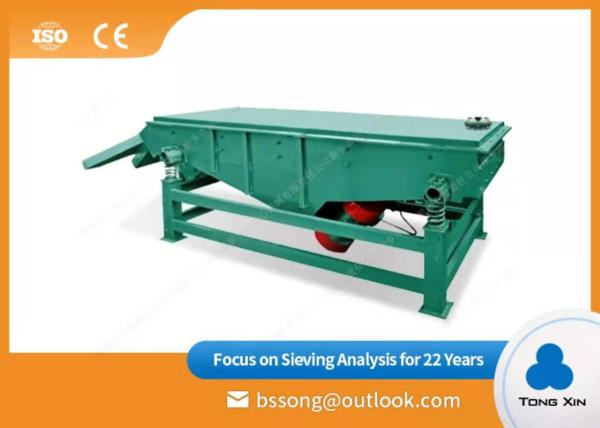

    Durable Industrial Vibrating Screen High Frequency Sieve Coal Vibrating Screen


    Wide Range Of Application Linear High Frequency Sieve Herb Cereal ZXS Series


    Introduction of Linear Vibrating Screen


    The vibration sieve machine is equipped with vibration mitigation bottom settings and the leaning degree may be altered according to different requirements.

    The Straight-line Linear Vibration Sieve series use centrifugal force generated on the vibration motor machine to obtain exciting force.

    The exciting force makes the sieve body and materials move up and down repeatedly. After filtered by two layers of net, the materials are divided into three levels according to diameters of the sieves so as to reach ideal goal.


    Features of Linear Vibrating Screen


    1. Low energy consumption, high efficiency.

    2. Simple structure, easy to maintenance.

    3. Full closed structure, no dust flying.

    4. Sieving accuracy reach to 400 mesh, 6 layers.


    Apply in Industry



    Tailing dry drainageIron tailing, gold tailing, copper tailing, vanadium tailing, lead-zinc tailing, graphite tailing.
    Washing SandQuartz Sand, Zircon Sand, Glass Sand, Building Sand, Casting Sand, Building Material Sand, Potassium Feldspar Dehydration
    Sewage TreatmentSolid-liquid Separation of Municipal Sewage, Industrial Sewage and River Sludge, Filtration of Sewage Treatment Plant.
    Soil remediation
    Slurry Dewatering

    Working Principle


    The material enters the feed port of the sieve machine uniformly from the feeder, and several grading products are produced through the multi-layer screens.

    Different grading materials are respectively discharged from the respective outlets.


    Technical Parameters


    ModelSize of Screen SurfaceLayerMesh SizeCapacityDouble AmplitudePowerOverall Dimension(L*W*H)

    ZXS

    525

    500*250012-2000.06-85-72*0.42642*808*848
    20.06-84-62*0.42699*808*878
    30.06-86-82*0.752750*808*938
    40.1-155-72*0.42813*808*1000
    50.08-155-72*0.42813*808*1060
    60.07-156-82*0.752953*808*1120

    ZXS

    830

    800*300010.1-206-82*0.753080*1098*1120
    20.1-206-82*0.753140*1098*1180
    30.1-206-82*1.53200*1098*1240

    ZXS

    1030

    1000*300010.1-206-82*0.753152*1340*1120
    20.1-206-82*1.53219*1340*1120
    30.1-206-82*1.53286*1340*1120


    Note: can increase the negative pressure devices for users, Minimum screen to 5 microns.


    Our Advantage


    Our company is a ISO9001:2000 certification enterprise, we cooperate with large domestic companies and some scientific research units. The follow picture is our long term cooperator.



    Our Service

    1. We provide 12 months quality warranty;

    2. We have professional engineer team ensure to provide the most professional equipment;

    3. Professional engineers team can choose the right equipment for you;

    4. We can provide thorough after-sales service to ensure the proper use of machine.

    5. We can provide OEM customization.


    If you want to get more information of product, please contact us!
