OEM Gold And Coal Mining Rotary Trommel Screen Large Production High Efficiency

Characteristics

Trommel screens provide a simple, efficient and economical solution for upgrading multiple materials and optimizing subsequent recycling process steps. This screening method helps to reduce operating and investment costs, improve product quality, and allows for fast and high volume processing. The rolling of the material in the drum screen can effectively prevent the screen hole from being clogged.

Features

1. The screen hole is not easily blocked.

2. Smooth operation and low noise.

3. Simple structure and convenient to maintenance.

4, screen cylinder can be closed, easy to close and collect dust.

5. The machine has high reliability and less one-time investment.

6. the use of special screen, screen has high efficiency and service life.

Specification

Trommel screen is mainly composed of motor, reducer, drum device, frame, sealing cover, inlet and outlet. The trommel screen is installed on the rack obliquely. The motor speed reducer is connected with the trommel screen through a coupling, which drives the trommel screen to rotate around its axis.

When the material enters the trommel screen, due to the tilt and rotation of the trommel screen, the material on the screen surface will turn over and roll, and the qualified material (the product under the screen) will be discharged through the screen of the trommel outer circle, and the unqualified material (the product on the screen) will be discharged through the end of the trommel.

Because of the material in the trommel through the turnover, rolling, so that the material stuck in the screen hole can be ejected, to prevent the screen hole blocking.

Technology parameter

Note: the technical parameters of GTS600 drum screen in the table are only for reference, the specific need is determined according to the product model.

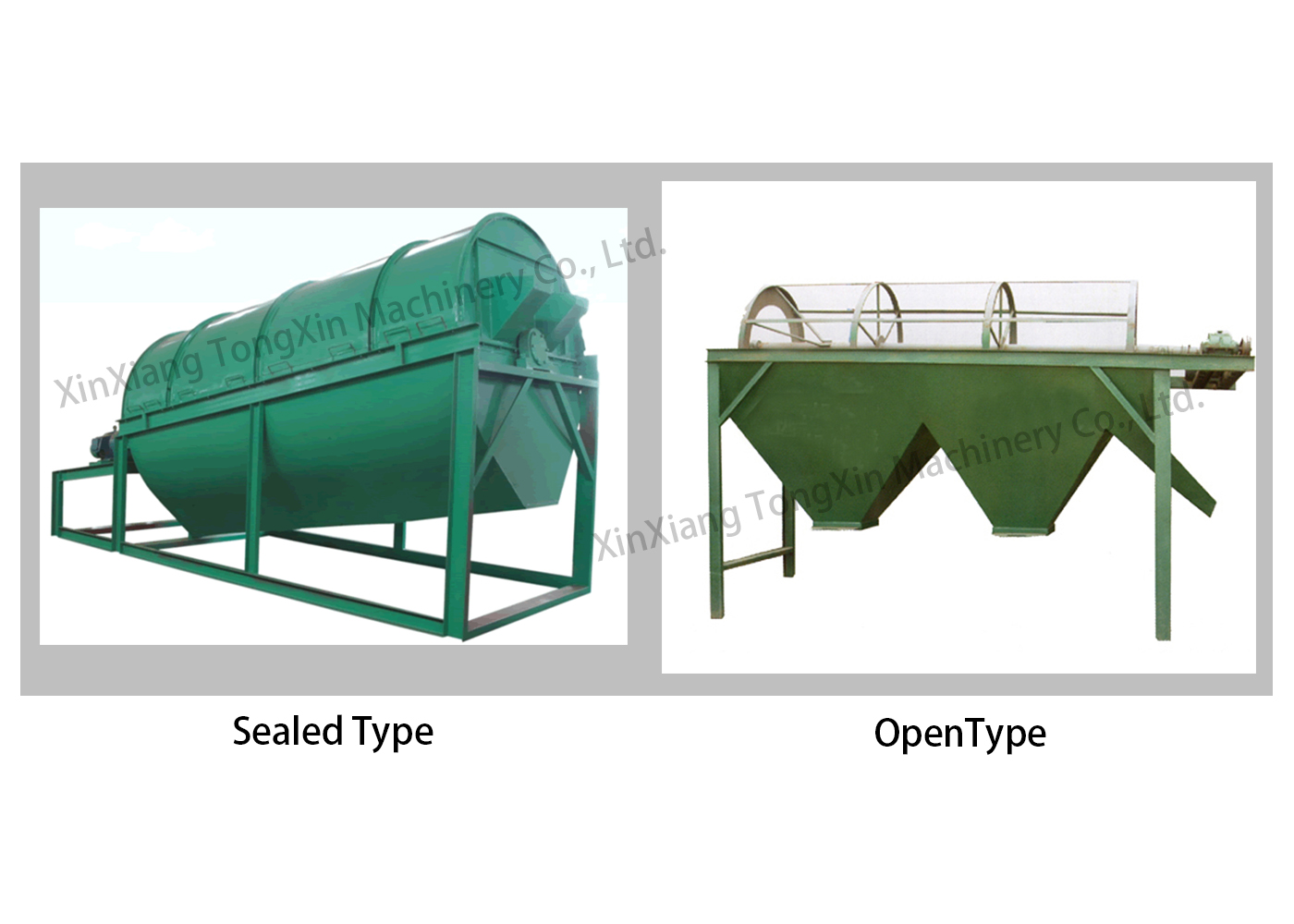

1) Type: open type and closed type;

2) Drive form: vibration motor drive or diesel engine drive;

3) Diameter of roller :600 mm,800 mm,1000 mm,120 mm,1500 mm,1800 mm,2000 mm.

Application Industry

1) Chemical industry: washing powder, resin powder, pigment, micro powder, paint, lemon powder, soda ash.

2) Rubber plastics abrasive ceramics industry: quartz sand, alumina, mud, spray soil particles.

3) Food industry: sugar, salt, alkali, monosodium glutamate, milk powder, soy milk, yeast, juice, soy sauce, vinegar, etc.

4) Paper industry: coating, clay mud, black and white liquid, waste liquid, paper liquid, wastewater recovery.

5) Metallurgy industry: titanium, zinc oxide, electromagnetic materials, metal powder, electrode powder.

6) Pharmaceutical industry: Traditional Chinese Medicine powder, Traditional Chinese Medicine liquid, western medicine powder, western medicine liquid, Traditional Chinese Medicine granules, etc..

7) Environmental protection: garbage, human and animal excrement, waste oil, food wastewater, wastewater processing.

Qualification And Certification

Please contacct us for more details!

    Xinxiang Tongxin Machinery Co. LTD. was established in 1996, mainly design and manufacture vibrating screen equipment, conveying equipment, lifting equipment, mixing equipment, dust removal equipment and other kinds of powder equipment.

    After more than 20 years development with the support of governments at all levels, we have 2 senior engineers and several intermediate or junior engineers with independent design and development capabilities. Xinxiang Tongxin Machinery has plant covers an area of more than 2000 square meters and office building covers an area of 800 square meters with 50 years of property rights to laid a firm foundation for a long-term stable service.

    Xinxiang Tongxin Machinery has a variety of CNC machining equipment, such as machining center, CNC lathe, CNC gantry drilling machine, CNC welding machine, CNC laser cutting machine, CNC bending machine, CNC plate shearing machine, large wave folding machine, metal netting machine, etc., we have now reached automatic production of blanking, welding, machining and other processes by cooperating with a large number of tools and molds to form an automated production line, and is committed to gradually realizing data interconnection and unmanned intelligent production. The use of automation equipment has greatly improved the production efficiency, and reduced the cost of a single machine, so that Xinxiang Tongxin Machinery in the premise of quality assurance to the general customers.

    The designers of Xinxiang Tongxin Machinery are committed to meet the differentiated requirements of different users, we provide customized design services, improve product adaptability, optimize the cost performance from the deep understanding of the product working principle and user process. At the same time, Xinxiang Tongxin Machinery is equipped with a large number of testing and experimental equipment for the product delivery test to ensure the product consistency and stability and provide a high-precision products to users.

    At present, Xinxiang Tongxin Machinery has been exported to 46 countries on 5 continents, including North America, Europe, Southeast Asia, South America, West Asia, Middle East and Africa and we have over 13,000 active users in China. The main users include international famous enterprises and advanced scientific research institutions, the most representative are Air China, CICC, China Metallurgical Group Corporation, CNPC, Sinopec, Charoen, Pokphand, Chinese Academy of Sciences, China National Medical Administration and so on.

    The tenet of Xinxiang Tongxin Machinery is: "with superb technology to deeply understand the needs of users, continue to improve the quality, provide a full line of customization. With high quality, first-class service to fulfill the commitment to customers ". All the staff of our company are committed to providing high quality service for customers.

    In 2016, Xinxiang Tongxin Machinery was successfully listed on the new fourth board.
