    Vertical Conveying Industrial Bucket Elevators

    Ask Lasest Price
    Brand Name : Tongxin
    Model Number : TD
    Certification : CE
    Price : Negotiate
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 sets/month
    Delivery Time : According to the order quantity
    • Product Details
    • Company Profile

    Vertical Conveying Industrial Bucket Elevators


    Starch Industrial Bucket Elevators Low Price Wholesale Black Nut Kaolin Lime


    Product Description


    Elevator conveyor belt is composed of rubber belt and elevator bucket, which need a belt with high strength and low elongation in service. The Bucket Elevator Conveyor Belt is applicable to transport vertically loose powdery materials of usually not more than 50mm in diameter, such as crushed limestone, sand, gravel, cement, grain etc.

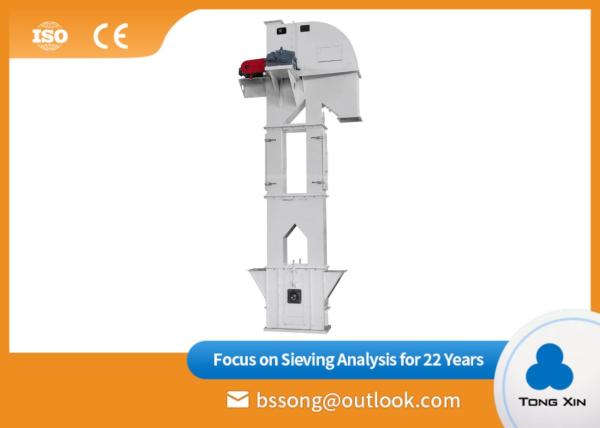

    Display of the Product



    Features

    1) Bucket elevator has less requirement on materials, features and the bulk. It can lift, the powder, granular and bulk materials.

    2) The max lifting capacity is 4,600m³/h.

    3) Bucket elevator adopts inflow feeding, gravity induced discharge, and use large capacity hopper.

    4) The traction parts adopt wear-resistant chains and steel wire belt to extend the service life of the traction parts.

    5) Bucket elevator runs smoothly, generally the lifting height is 40m or even higher.


    Applicable Fields of Belt Conveyor



    The bucket elevator is used for powder, granule, block material vertical continuous rising. Widely applied in the feed mills, grain and oil plant, food, chemical, building materials, grain store, bulk materials' lifting transport in port.

    Working Principle

    Gas Purification ProcessGas with dust get into filter chamber through air inlet. Coarse dust particles due to inertial impaction, natural sedimentation and dust box, fine dust rose into the air with each filter chamber under negative pressure of the wind, the outer barrier attached to the bag and was purified gas from the outlet discharge.
    Soot Cleaning ProcessIssued by the electronic control system control signals, by incorporating gas system to complete, due to the use of sub-chamber structure, by-room cleaning, so much so that dust is always in the room to work, room cleaning status guarantees a filtration resistance stability.


    Technical Parameters


    Hoist ModelTD250TD315TD400TD500TD630TD800TD1000
    Hopper TypeJT
    Transportation Quantitym³/h15-2532-4650-7584-120135-190216-310340-480

    Hopper

    Bucket Widthmm2503154005006308001000
    Bucket CapacityL36122550100200
    Bucket Pitchmm200200250320400500630

    Chain

    Pitchmm100100125160200250315
    Chain No.12
    Chain Capacity(min)kn112/160160/224224/315315/450450/630630/990
    Chain Wheel Diammm386.37386.37482.96618.19772.74965.921217.06
    Spindlemm24.7124.7119.7815.4513.269.897.85


    Note: this is only for reference and products specification should be studied from the real products provided. Can be customized according to customer requirements.

    Our Service


    1. We Provide video installation instructions;
    2. We offer 24-hour online consulting service;
    3. 20 years production experience to ensure quality;
    4. We have thorough data to ensure the quality;
    5. We provide detailed instruction an product information.

    If you want to get more information of product, please contact us!
