    Chain Type Industrial Bucket Elevators Carbon Steel Bucket Type Conveyor

    Ask Lasest Price
    Brand Name : Tongxin
    Model Number : TD
    Certification : CE
    Price : Negotiate
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 sets/month
    Delivery Time : According to the order quantity
    • Product Details
    • Company Profile

    Chain Type Industrial Bucket Elevators Carbon Steel Bucket Type Conveyor


    China Manufacturer Chain Type Bucket Conveyor Belt Carbon Steel Load Material


    Description

    The bucket elevator is a continuous conveying machine, which usually raises the material vertically, and the hopper is automatically loaded through the tail, and then throws the material after running the head sprocket.

    It has been used in the cement, metallurgy and food storage and transportation industries.

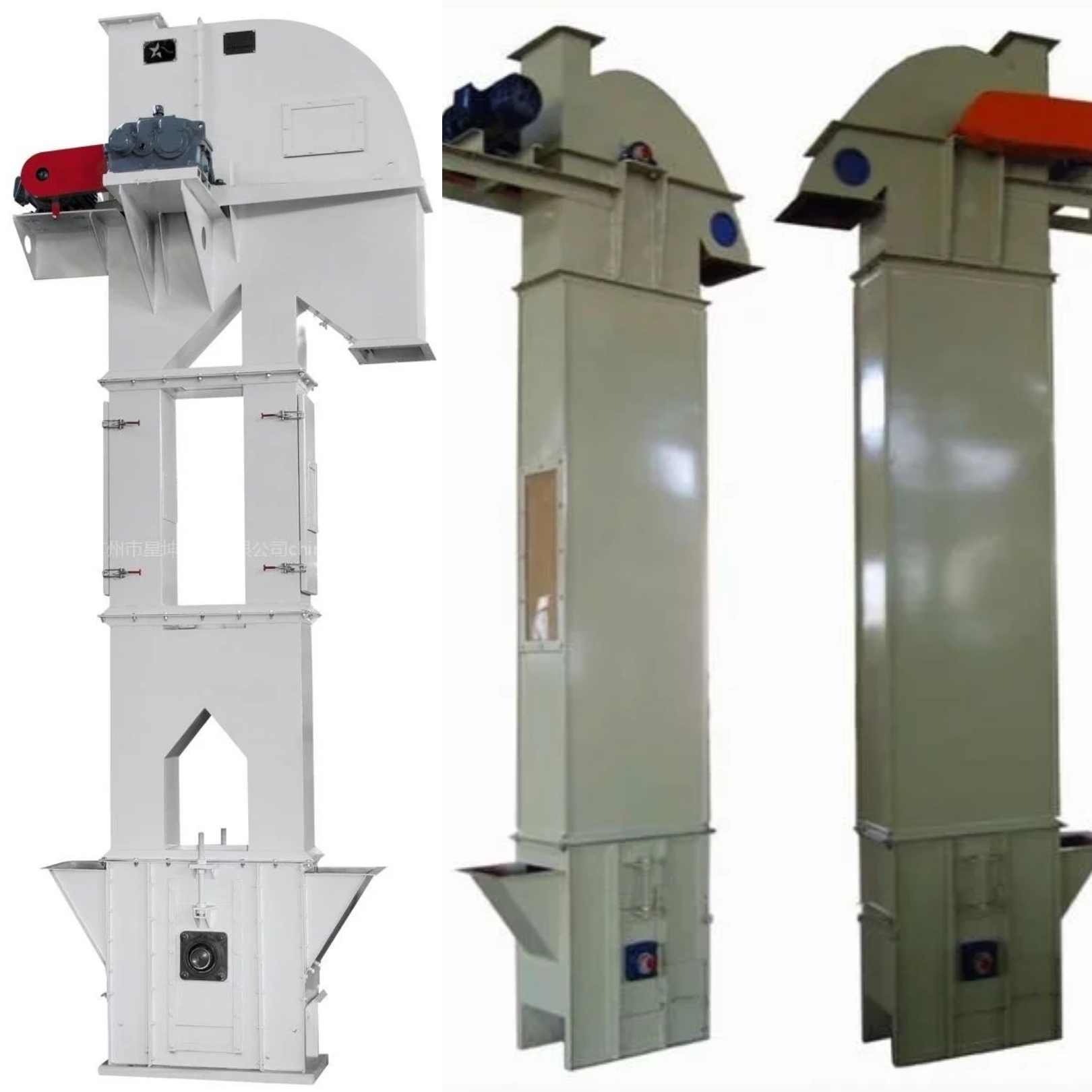

    Display of the Product



    Features


    (1) Large conveying capacity.

    (2) High hoisting height.

    (3) Smooth and reliable operation.

    (4) Long operating life.


    Applicable Fields of Belt Conveyor



    The bucket elevator applies to vertically transport powder, granular, and small lumps which is bulk materials, such as grain, coal, cement, crushed ore and so on. The maximum height is 40m.


    Working Principle


    The hopper scoop up the material from the nether storage, raising to the top along with the conveyor belt or chain. After bypassing the top wheel it turns downward, and the bucket elevator dump the material into the tank.


    Technical Parameters


    Hoist ModelTD250TD315TD400TD500TD630TD800TD1000
    Hopper TypeJT
    Transportation Quantitym³/h15-2532-4650-7584-120135-190216-310340-480

    Hopper

    Bucket Widthmm2503154005006308001000
    Bucket CapacityL36122550100200
    Bucket Pitchmm200200250320400500630

    Chain

    Pitchmm100100125160200250315
    Chain No.12
    Chain Capacity(min)kn112/160160/224224/315315/450450/630630/990
    Chain Wheel Diammm386.37386.37482.96618.19772.74965.921217.06
    Spindlemm24.7124.7119.7815.4513.269.897.85


    Note: this is only for reference and products specification should be studied from the real products provided. Can be customized according to customer requirements.


    Our Service


    1. We Provide video installation instructions;
    2. We offer 24-hour online consulting service;
    3. 20 years production experience to ensure quality;
    4. We have thorough data to ensure the quality;
    5. We provide detailed instruction an product information.


    If you want to get more information of product, please contact us!
