Can Customized Industrial Bucket Elevator Manufacture High Quality Low Price

Description

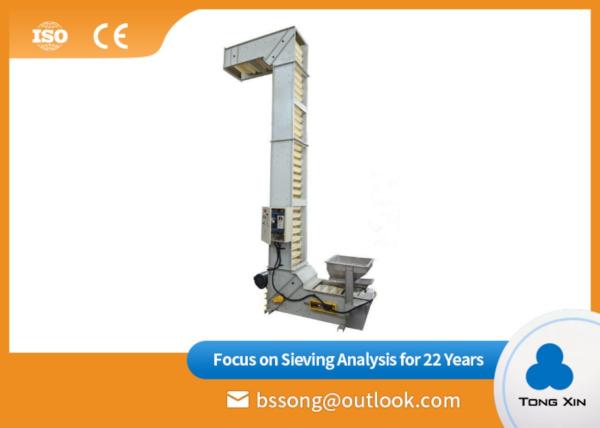

Z type bucket elevator is very useful system for taking the material upward, distributing, feeding etc. Buckets on bearings remains always vertically down while passing vertical, angular or horizontal travel thus ensuring no wastage and dropping of material during travel.

Features

1. The operation reliability of the z-type bucket elevator is good. The advanced design principle and processing method ensure the reliability of the whole machine, and the trouble-free time exceeds 20,000 hours. The hoist runs smoothly, so it can reach a higher lifting height.

2. The work life is long, the feed of the elevator adopts the inflow type, no need to use the bucket to dig the material, the phenomenon of extrusion and collision between the materials is rare. The machine is designed to ensure that the material is seldom scattered during feeding and unloading, which can reduce the mechanical abrasion.

Applicable Fields of Belt Conveyor

It mainly applies to vertically hoist granule of food, grain,feed, plastics and chemical sectors. Elevator hopper is risen by the chain, vertically elevating bulk materials and small particles. It has circuit control and switch that realize stopping and feeding automatically. With the advantages of big hoist capacity and height.

Working Principle

The lifting height can reach 40m.

Type Z according to JB3926-85 "vertical type Z bucket elevator" standard design and manufacture, the domestic commonly used type Z bucket elevator are vertical type, and it is relatively new.

Type Z bucket elevator with four kinds of hopper Q (shallow bucket), H (arc bottom bucket), ZD (deep bucket), SD (deep bucket). The main frame of the equipment can be used according to the different needs of carbon steel spray, 304 stainless steel, 316L stainless steel materials, hopper materials are plastic hopper, carbon steel hopper, stainless steel hopper optional. Because of the traction mechanism of the hoist is a ring belt, it is not allowed to transport high temperature (not more than 70°) of the material.

Technical Parameters

Note: this is only for reference and products specification should be studied from the real products provided. Can be customized according to customer requirements

Our Service

1. We Provide video installation instructions;
2. We offer 24-hour online consulting service;
3. 20 years production experience to ensure quality;
4. We have thorough data to ensure the quality;
5. We provide detailed instruction an product information.

If you want to get more information of product, please contact us!

    Xinxiang Tongxin Machinery Co. LTD. was established in 1996, mainly design and manufacture vibrating screen equipment, conveying equipment, lifting equipment, mixing equipment, dust removal equipment and other kinds of powder equipment.

    After more than 20 years development with the support of governments at all levels, we have 2 senior engineers and several intermediate or junior engineers with independent design and development capabilities. Xinxiang Tongxin Machinery has plant covers an area of more than 2000 square meters and office building covers an area of 800 square meters with 50 years of property rights to laid a firm foundation for a long-term stable service.

    Xinxiang Tongxin Machinery has a variety of CNC machining equipment, such as machining center, CNC lathe, CNC gantry drilling machine, CNC welding machine, CNC laser cutting machine, CNC bending machine, CNC plate shearing machine, large wave folding machine, metal netting machine, etc., we have now reached automatic production of blanking, welding, machining and other processes by cooperating with a large number of tools and molds to form an automated production line, and is committed to gradually realizing data interconnection and unmanned intelligent production. The use of automation equipment has greatly improved the production efficiency, and reduced the cost of a single machine, so that Xinxiang Tongxin Machinery in the premise of quality assurance to the general customers.

    The designers of Xinxiang Tongxin Machinery are committed to meet the differentiated requirements of different users, we provide customized design services, improve product adaptability, optimize the cost performance from the deep understanding of the product working principle and user process. At the same time, Xinxiang Tongxin Machinery is equipped with a large number of testing and experimental equipment for the product delivery test to ensure the product consistency and stability and provide a high-precision products to users.

    At present, Xinxiang Tongxin Machinery has been exported to 46 countries on 5 continents, including North America, Europe, Southeast Asia, South America, West Asia, Middle East and Africa and we have over 13,000 active users in China. The main users include international famous enterprises and advanced scientific research institutions, the most representative are Air China, CICC, China Metallurgical Group Corporation, CNPC, Sinopec, Charoen, Pokphand, Chinese Academy of Sciences, China National Medical Administration and so on.

    The tenet of Xinxiang Tongxin Machinery is: "with superb technology to deeply understand the needs of users, continue to improve the quality, provide a full line of customization. With high quality, first-class service to fulfill the commitment to customers ". All the staff of our company are committed to providing high quality service for customers.

    In 2016, Xinxiang Tongxin Machinery was successfully listed on the new fourth board.
