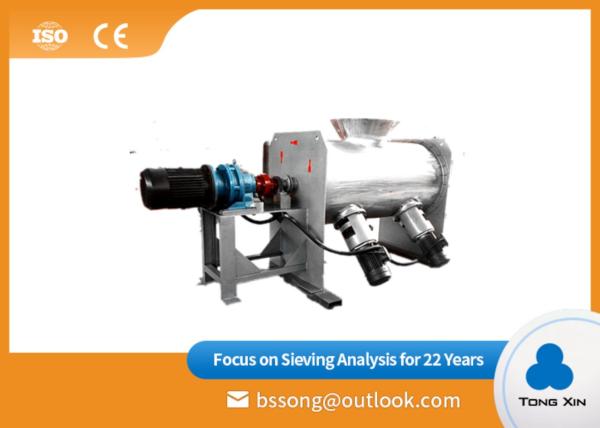

High Efficiency Coulter Mixing Machine Horizontal Plough Mixer Eco Friendly

    Buy cheap High Efficiency Coulter Mixing Machine Horizontal Plough Mixer Eco Friendly from wholesalers

    Buy cheap High Efficiency Coulter Mixing Machine Horizontal Plough Mixer Eco Friendly from wholesalers
    • Buy cheap High Efficiency Coulter Mixing Machine Horizontal Plough Mixer Eco Friendly from wholesalers

    High Efficiency Coulter Mixing Machine Horizontal Plough Mixer Eco Friendly

    Ask Lasest Price
    Brand Name : Tongxin
    Model Number : DSH
    Certification : CE
    Price : Negotiate
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 1000 sets/month
    Delivery Time : According to the order quantity
    • Product Details
    • Company Profile

    High Efficiency Coulter Mixing Machine Horizontal Plough Mixer Eco Friendly


    Hot Sale 20 Years Manufacturer Coulter Blender Direct Sale Powdery Granulous


    Introduction


    The model consists of a transmission mechanism, a horizontal cylinder, a coulter and a flying knife. The material moves convectively along the wall of the cylinder under the action of the coulter.

    When the material flows through the flying knife, it is thrown by the high-speed rotating flying knife, so that uniform mixing can be achieved in a short time. It can satisfy most complex processes such as solid-liquid mixing, wet granulation and drying.


    Features


    Major SectionsBarrel, coulter agitators, feeding parts, discharging part and driven unit,fly cutter can be choosed.
    SizesAvailable from 50Liter to 10000 Liters.
    MaterialCarbon Steel, Stainless Steel 304, Stainless Steel 316L
    DischargePneumatic valve,Flap valve, butterfly valve, slide gate valve, ball valve
    SpeedControls such as variable frequency drives, motor starters and operator stations are available.
    TemperatureMixer can be equipped with heating or cooling jacket if temperature control is required, Spray nozzles for liquid introduction,
    ApplicationPowder and liquid mixing, like Food, Pharmaceutics; Agriculture; Dyestuff; Chemicals.

    Display of Detail


    Apply in Industry



    Coulter mixer is widely used in chemical industry, coating, medicine, food, feed, fuel, metallurgy, mining and other industries solid-solid (that is, add liquid powder) mixing, and wet granulation, drying, concentration and other composite technology.


    Working Principle


    Horizontal coulter mixer consists of drive disk assembly, agitator, round-shape cylinder, high-speed fly-cutter.

    The coulter mixer not only disperses materials along axial direction during high speed rotation, but drives the materials flow in circles around the cylinder wall, which settles the stratification efficiently.

    At the same time, fly-cutter rotates in high speed to smash the agglomeration. With the combined action of plough and fly-cutter, materials can be fully mixer in short period.


    Technical Parameters


    SpecificationLDH-0.3LDH-0.5

    LDH-1

    LDH-2LDH-3LDH-4LDH-6LDH-8LDH-10LDH-15
    Working Capacity(m3)0.180.30.61.21.82.43.64.869
    Batch Production(KG)2003006001200180025003600500060009000
    Speed (r/min)1301308563634242333328
    Power (KW)5.57.51115223045557590
    Weight (KG)55080010001800250035004200480058007000
    L2200270032004100435047005400650056006000
    C90098010001250145015001700220025002800
    H900120013501600180019502300260029003000

    Note: The company reserves the right to modify all technical parameters and sizes. If the material object is inconsistent with the text, the material object shall prevail.


    Our Service


    1. We have professional engineer team ensure to provide the most professional equipment;

    2. Professional engineers team can choose the right equipment for you;

    3. We can provide thorough after-sales service to ensure the proper use of machine.

    4. We can provide OEM customization.


    If you want to get more information of product, please contact us!
