Professional Manufacture Rotary Vibrating Screen Mesh Powdered Sugar Paste

Introduction

The rotary vibrating screen machine is particularly used to classify small materials and fine powder according to its unique structure and working principle.

It is not only apply to dry sieving, but also wet sieving. It is widely used in mine, building material, metallurgy, foundry, abrasive material, chemical, light industry, medical, food and other industry.

Working Principle

Our circular vibrating screen, as a piece of powdery material screening equipment, uses vertical vibration motor or special vibration exciter as its vibration source.

The vibration motor and vibration exciter have an eccentric block at the both upper and lower sides.

The eccentric blocks can generate a three-dimensional movement in horizontal, vertical and inclined direction.

By adjusting the phase angles of the upper and lower eccentric blocks, the material on the screen can change the movement locus, achieving suitable screening performance.

Features

1. Fully adjustable amplitudes of vibration;
2. 25 µm to 25 mm aperture quick change mesh-frames;
3. Automatic ejection of oversize materials;
4. 304 / 316 L stainless steel contact parts as standard;
5. Deep anti - splash top rims;
6. Quiet operation from polyurethane suspension spring mounts.

Display of the Spare and Accessory Parts

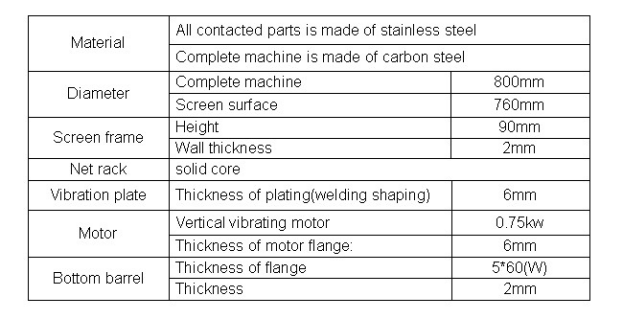

Specification

The principle of rotating vibrating screen is to achieve three layers, screening effect is better, if there are special requirements, can be configured to five layers Concentric rotating sieve parameters is introduced, which can be make a diameter of 400 mm / 600 mm / 800 mm / 1000 mm / 1200 mm / 1500 mm / 1800 mm / 2000 mm spin vibration sieve screening machine.

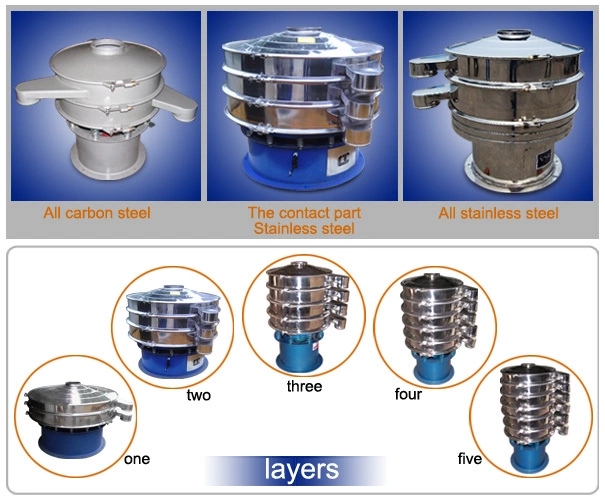

Our company can do the number of layers vibration screen are as follows

Apply in Industry

Technical Parameter

Note: We reserves the right to modify all technical materials and dimensions.

Attention Matters

1. Once the machine on operation, vibration part shall not be connected or contact with any object.
2. When feeding materials, pay attention to ensure the uniform feeding.
3. When the material through down, keeping no big impact to damage the screen.
4. Before operation and power off, there should no be any material on screen surface.
5. If there is any abnormal sound in the operation, the machine should be shutdown immediately and to check.
6. Ensure vibration motor maintenance regularly.

Our Service

1. We have thorough data to ensure the quality;
2. We provide detailed instruction an product information;
3. We provide 12 months quality warranty;
4. We have professional engineer team ensure to provide the most professional equipment;
5. Professional engineers team can choose the right equipment for you;
6. We can provide thorough after-sales service to ensure the proper use of machine.

If you want to get more information of product, please contact us!
