Pearl Powder Tumbler Screen High Efficiency High Yield Stainless Steel

Overview of Swing Screen

Swing screen is a special design of a new efficient screening machine in order to meet the requirements of large output and high density screening. The simple sifting is done by looking at the screen with eyes and screening with hands. The shaking sifting machine is a mechanical with simulation of that.And according to the physical characteristics of the material, the customer's different screening requirements for independent adjustable speed, eccentricity, radial force to adjust, change the material in the screen surface stay time and movement route, in order to achieve a good screening effect.

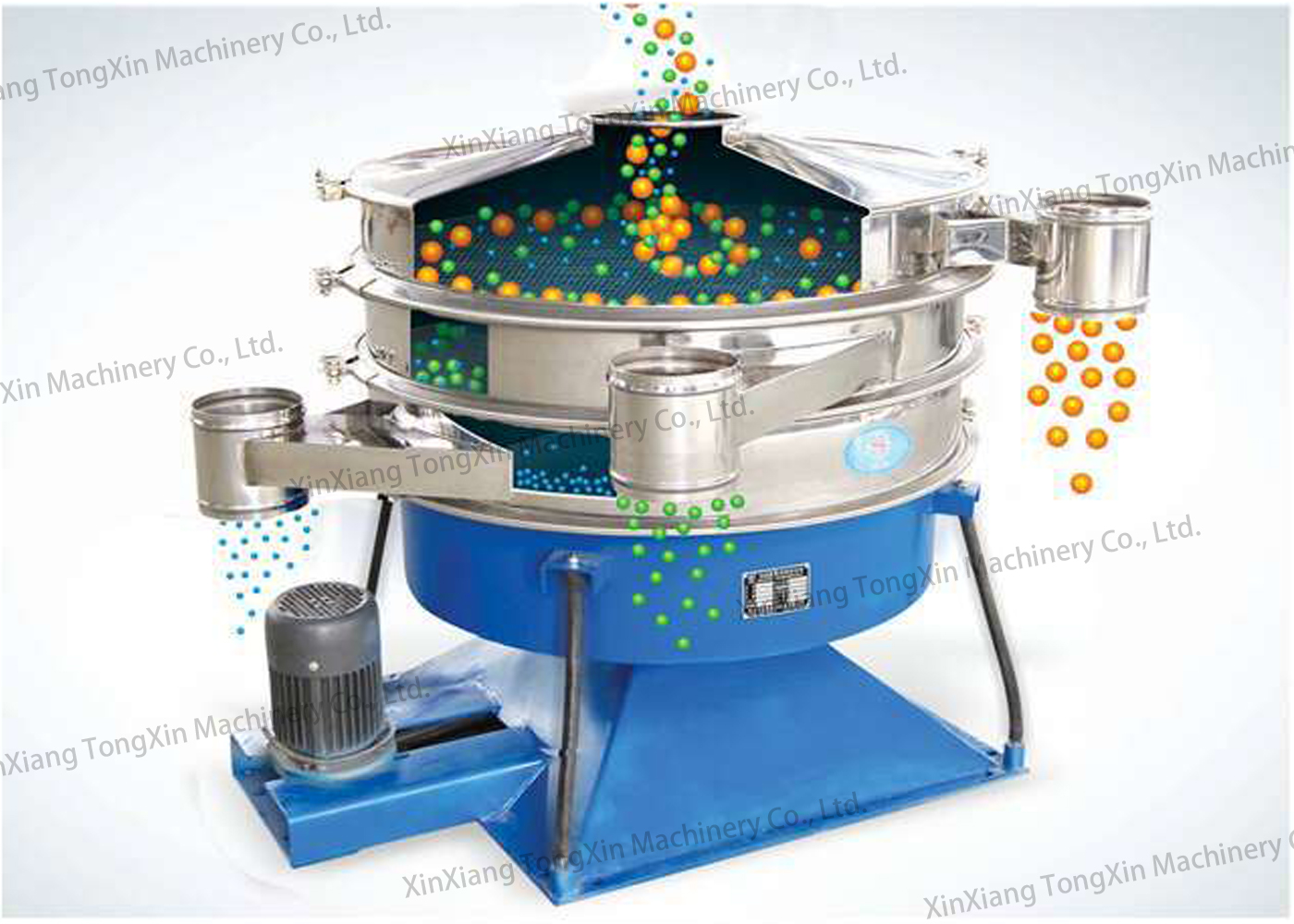

Structural Principle of Swing Screen

The basic rotary motion is similar to manual screening. The residence time of each material can be adjusted by swinging the radial and corner cut of the sieve towards the driving axis. So that build up a horizontal and throw 3D roll motion. material from the center to the outer edge is evenly dispersed on the whole screen surface, thus propagating axially with spiral movement. This completes the whole screening process of fine particles.

Structural Principle of Swing Screen

• For fine and hyperfine powder screening, especially for materials difficult to deal with.
• Effective imitation of manual screening action and process, the material in the screen surface presents a gradual opening spiral movement, so that the material in the relative area have a relatively long journey, screening accuracy up to 90-95% !
• Soft swing screening, will not damage the original structure of wool particles, not easy to generate static electricity, for flammable material, explosive material and easy to generate static electricity material is a good choice, and effectively extend the life of equipment components.
• Anti-blocking technology is advanced diversified, five different cleaning methods: bounce ball cleaning mesh surface, roller brush cleaning mesh surface, air jet cleaning mesh surface, elastic scraper cleaning mesh surface,and ultrasonic technology cleaning mesh surface, so the screen hole will not be blocked, to ensure the continuity of screening.
• Round modular assembly structure, simple installation and strip. The outlet can rotate 360 degrees at will.
• The vertical acceleration value of material particles is low, which makes the screen not easy to be damaged and extends the service life of the screen.
• Noise as low as 80 dBa, completely closed operation, more environmentally friendly.
• Uses the ordinary motor as the power source.

Application Industry

Wide range of application:

Coal, ore, geology, electricity, food, building materials, coatings, abrasives, defense industry, metallurgy.

Technology Parameter

Please Contact us for more details!

    Xinxiang Tongxin Machinery Co. LTD. was established in 1996, mainly design and manufacture vibrating screen equipment, conveying equipment, lifting equipment, mixing equipment, dust removal equipment and other kinds of powder equipment.

    After more than 20 years development with the support of governments at all levels, we have 2 senior engineers and several intermediate or junior engineers with independent design and development capabilities. Xinxiang Tongxin Machinery has plant covers an area of more than 2000 square meters and office building covers an area of 800 square meters with 50 years of property rights to laid a firm foundation for a long-term stable service.

    Xinxiang Tongxin Machinery has a variety of CNC machining equipment, such as machining center, CNC lathe, CNC gantry drilling machine, CNC welding machine, CNC laser cutting machine, CNC bending machine, CNC plate shearing machine, large wave folding machine, metal netting machine, etc., we have now reached automatic production of blanking, welding, machining and other processes by cooperating with a large number of tools and molds to form an automated production line, and is committed to gradually realizing data interconnection and unmanned intelligent production. The use of automation equipment has greatly improved the production efficiency, and reduced the cost of a single machine, so that Xinxiang Tongxin Machinery in the premise of quality assurance to the general customers.

    The designers of Xinxiang Tongxin Machinery are committed to meet the differentiated requirements of different users, we provide customized design services, improve product adaptability, optimize the cost performance from the deep understanding of the product working principle and user process. At the same time, Xinxiang Tongxin Machinery is equipped with a large number of testing and experimental equipment for the product delivery test to ensure the product consistency and stability and provide a high-precision products to users.

    At present, Xinxiang Tongxin Machinery has been exported to 46 countries on 5 continents, including North America, Europe, Southeast Asia, South America, West Asia, Middle East and Africa and we have over 13,000 active users in China. The main users include international famous enterprises and advanced scientific research institutions, the most representative are Air China, CICC, China Metallurgical Group Corporation, CNPC, Sinopec, Charoen, Pokphand, Chinese Academy of Sciences, China National Medical Administration and so on.

    The tenet of Xinxiang Tongxin Machinery is: "with superb technology to deeply understand the needs of users, continue to improve the quality, provide a full line of customization. With high quality, first-class service to fulfill the commitment to customers ". All the staff of our company are committed to providing high quality service for customers.

    In 2016, Xinxiang Tongxin Machinery was successfully listed on the new fourth board.
