Manufacturer Tongxin Test Sieve With High Cost Performance Of Sand
Sieving
Introduction
The test sieve (standard sieve, sample sieve, and sleeve sieve) is
divided into wire woven mesh test sieve, metal perforated plate
test sieve, and electronic-forming test sieve according to the
material of sieve surface.
The wire woven mesh test screen was produced by using the national
standard GB/T6003.1-2012. The mesh has a basic size of 2.36mm-0.02mm, conforms to the international standard IS003310-1:1990 R20/3 R20 R40/3 series, and the material of screen is stainless steel.
The metal perforated plate test adopts the national standard
GB/T6003.2-1997, which conforms to the international standard IS03310-2:1990 R20/3 R20 R40/3 series, the screen is made of stainless steel. The electronic-forming
test screen uses national standards, with a mesh accuracy of ±2 microns and a finest mesh size of 5 microns.
We solemnly promises that if the mesh does not meet the
corresponding standards, it will be free return.
Structure
1) Screen frame: polishing or not, according to customer
requirements;
2) Screen cloth: two kinds-wire cloth, perforated plate;
3) Screen cloth and frame are fixed by welding, can withstand
temperatures up to 100 degree.
Feature
1) Long-term use will not be deformed.
2) Every aperture is the same size.
3) Stainless steel wire mesh aperture size is from 2360 microns to
20 microns tested by the microscope.
4) Wearable and high toughness.
Classification
The test screen is also called pharmacopoeia screen, sand screen,
casting screen, standard screen, experimental screen, sample
screen, set screen, inspection screen, analysis screen, Taylor
screen, American standard screen, etc.
The test screen is classified according to the industry: grain
screen, casting screen, sugar screen, abrasive screen, construction
screen, stone screen, asphalt screen, soil screen, pharmacopoeia
screen, lime screen, cement screen, sand screen, tea screen, flour
special screen, diamond standard screen, cell screen, feces screen,
cow feces analysis screen, etc.
Apply in Industry
Widely used in mineral, stone, ceramics, metallurgy, chemical,
refractory, grain and other sectors of the classification of
materials and small particle filter.

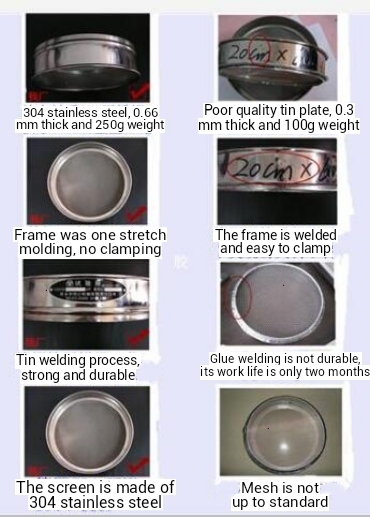

Compare of The Quality with Other Companies
Usage
1. The standard test screen should be placed horizontally.
1) Confirm the power supply and nameplate requirements, and ensure
that grounding;
2) The vibrating part cannot contact with other objects;
3) Make sure the bolts of each part are fastened.
2. Standard test screen determine the standard screen frame to be
selected according to the inspected materials and corresponding
standards.
3. The standard screen frame should be stacked on the base of the
screen frame from bottom to top.
4. Standard test screen put the inspected material into the
standard screen frame at the upper end, cover the top cover of the
standard screen, adjust the height of the lever according to the
total height of the standard screen frame, and then position and
press the standard screen frame with the pressure plate and lock
nut (note: both sides should be applied with the same force).
5. The standard test screen shall set the running time on the timer
according to the material nature and feeding amount, and then turn
on the power switch, and the standard test screen shall start to
work.
6. After the work stops, unscrew the lock nut, remove the platen
and carefully remove the standard screen frame.
7. Turn off the power.
Our Advantage
1) Tongxin company has sufficient stock and spot supply,
conventional products can do to 2 working days to deliver.
2) Professional production test screen for 20 years, has a quality
assurance.
If you ant to get more information, please contact us!
