BZS-300 Laboratory Sieve Shaker Chemical Industry Water Treatmnt
Oil Paint
Introduction
Laboratory sieving machine test sieves is a precision instrument,
it's widely used in laboratory and quality inspection department
and other test department for particle analysis on size
distribution, impurity level, solid content and liquid content, and
so on.
Laboratory sieving machine test sieves can ensure accuracy, install
time relay, and setting up sieving time, reducing testing error to
minimum level, ensure consistency of sample analysis data, and make
accurate judgment of product quality.
Details
Features
1. Small size, light weight and easy to move.
2. Screening high precision, screening to 325 meshes.
3. Low noise,low consumption.

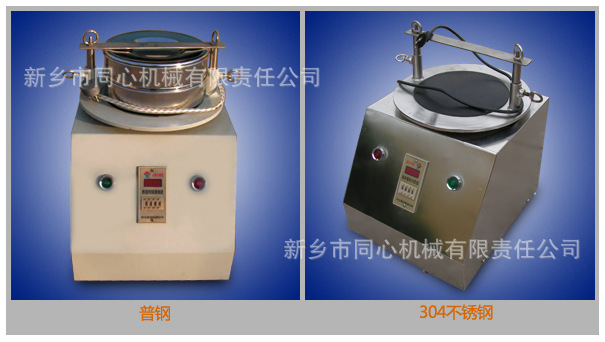

4. Various structure providing to customer. Containing carbon steel
sprayed and stainless steel.
5. Batch charging not more than 200g once.
6. Excellent quality, obtain the customers trust.
7. Small volume, simple and rational structure.
Specification
Apply in Industry
It applies in the accurate analysis of granularity structures of
particle and power materials, and the testing analysis of solid
content in liquid for laboratories, quality control rooms and
scientific research departments.
The testing sieve is widely used in testing analysis of chemical,
pharmaceutical, food, building materials, powder metallurgy, and
material in the processing process of the sewage and waste water
from environmental protection industry.

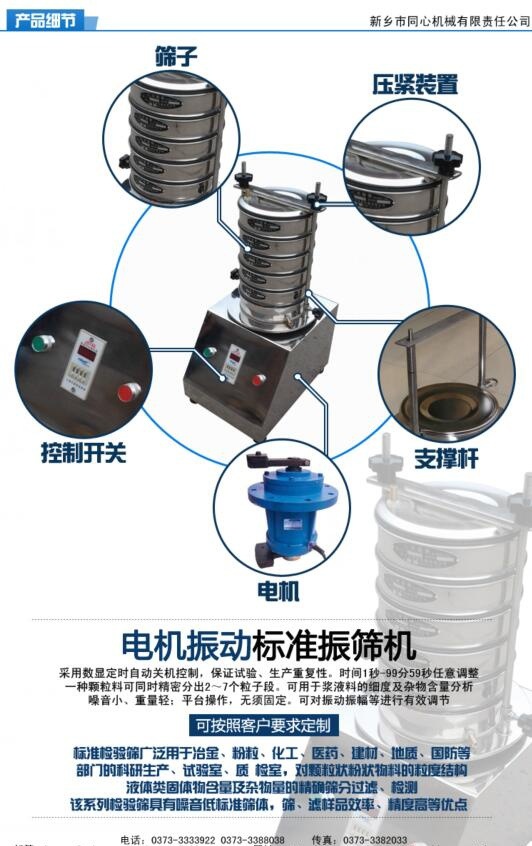

Working Principle
Standard screen machine by the vibration motor drives the upper
vibration plate, again through the vibration plate to placed
vibration place on the upper sieve box, and then by the mesh sieve
box to check the material particles smaller than the screen top
wire hole screening to the sieve box, so the screening.
Each layer test only stay in the same granularity material, to
achieve the separation of different particle size and to determine
the grain size composition of the material, makes the screen box of
materials can be very effective filtering, grading, screening
purposes.
Technical Parameters
| No. | Name | Unit | Parameters |
| 1 | Suitable sieve diameter | mm | 200mm/203(8")/300mm |
| 2 | Quantity of placed sieve | piece | 1-7(including sieve pan&cover) |
| 3 | Measuring range | mm | 45 micron-25mm |
| 4 | Noise | dB | <60 dB |
| 5 | Amplitude | mm | 1-5mm |
| 6 | Automatic timing control | min | 0~99mins59secs |
| 7 | Motor vibration frequency | R/min | 1400 r/min |
| 8 | Power | V;Hz | 220v, single phase, 50Hz, 0.12kw |
Our Service
1. We offer 24-hour online consulting service;
2. 20 years production experience to ensure quality;
3. We have thorough data to ensure the quality;
4. We provide detailed instruction an product information;
5. We provide 12 months quality warranty.
If you want to get more information of product, please contact us!
